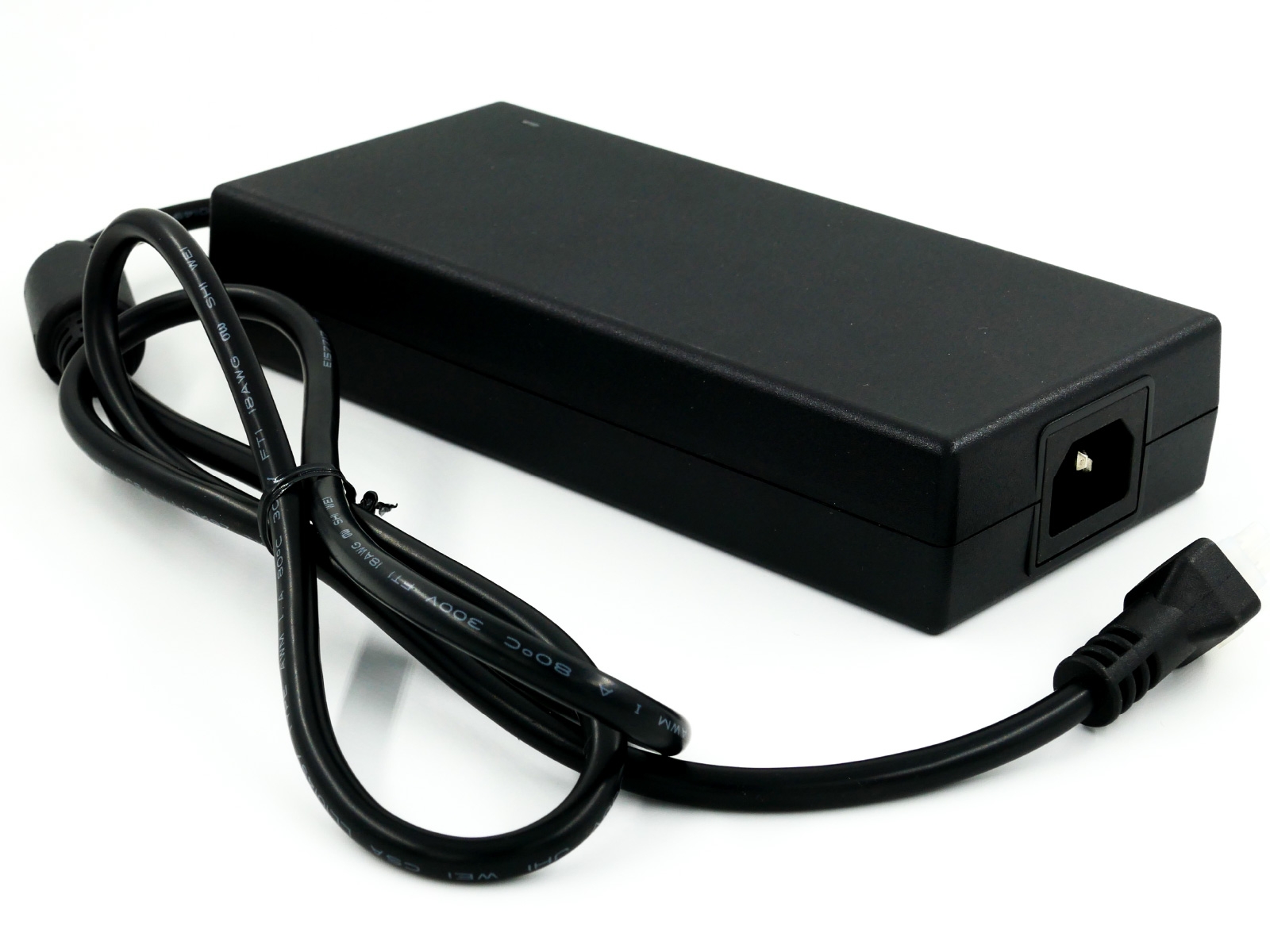

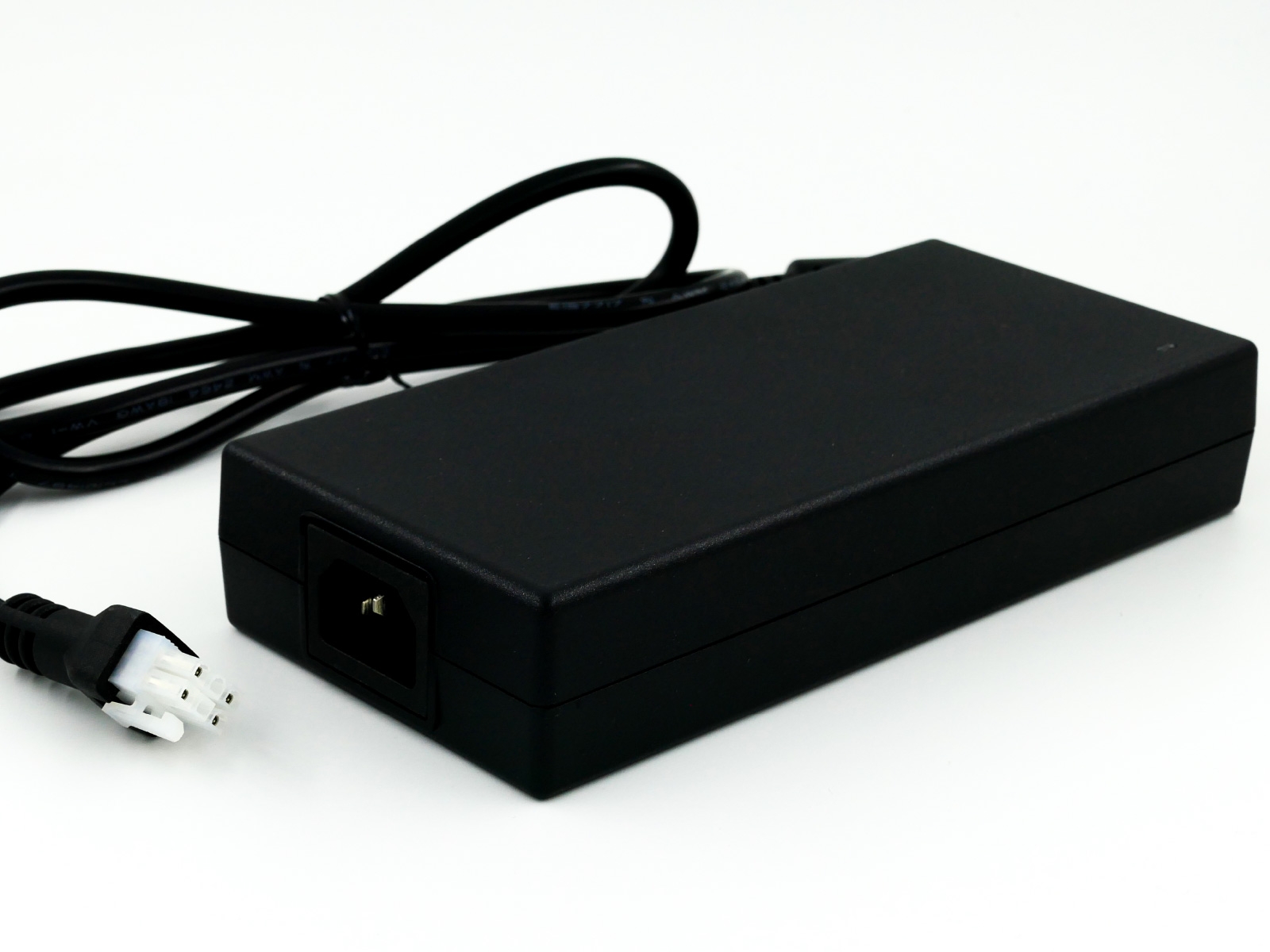

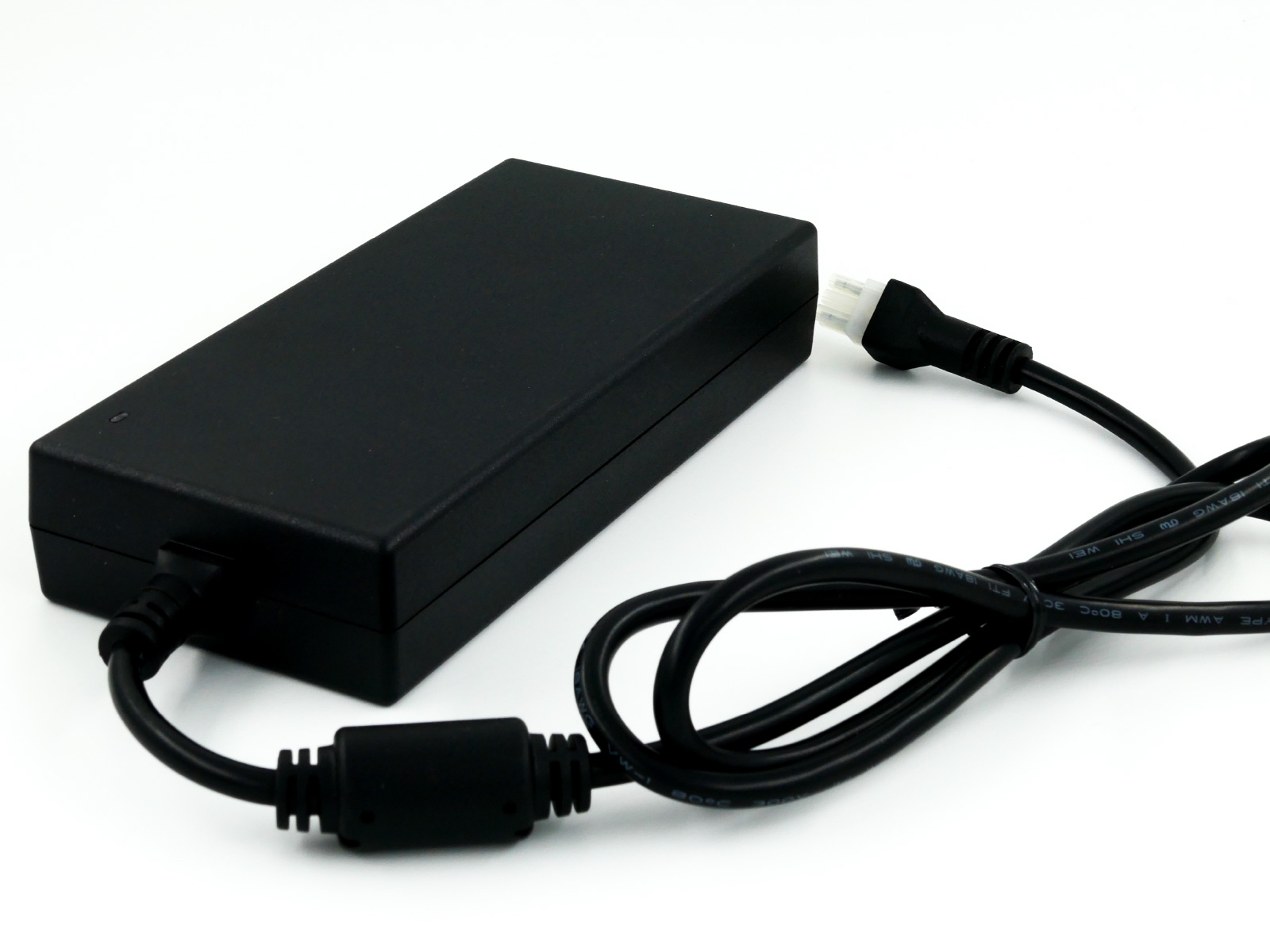

Medical Adapter ATM300TS

Share To Facebook Share To Twitter
Medical Adapter ATM300TS

Features :



- IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.1)
- EMC : IEC60601-1-2 : 2014 (Edition 4.0)
- IEC/EN/UL 62368-1 & IEC 60950-1
- 100-240 VAC Universal Input
- Gallium Nitride Based Design
- High Power Density : 9W / in3
  250% higher than traditional adapter (3.6W / in3)
- With 250kHz Switching Frequency
- Means of Protection: 2 X MOPP
- Touch Current : < 100μA
- Efficiency up to 95%
- Single Output to 300W
- Regulated Output with Low Ripple Noise
- Modified and Custom Design Available
- 2 Year Warranty

Product Introduction

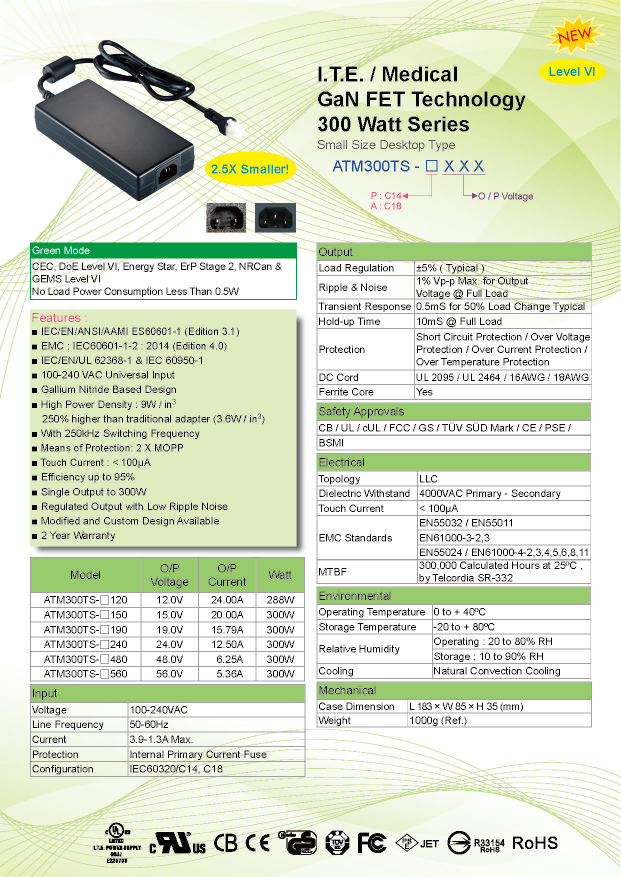

proimages/300TS.jpg
